Basic Info.

Model NO.	TT-CW95
Check Weight Range	1-999g
Application Area	Food & Beverage Industry
Type	High Precision Series
Touch Screen	Touch Screen
Sorting Method	Pusher-bar
Belt	PU, Chain Conveyor
After-Sales Service Provided	Online Support
Certification	CE;ISO9001
Material	Stainless Steel 304
Specialty	Dust-Proof and Water-Proof
Eliminate Optional Device	Swing Arms, Pusher
Power Supply	220V
Customized Support	OEM, ODM
Parameter Adjustment	Auto Learning/Manual Setting
Display Type	Touch Screen
Transport Package	Wooden Case
Specification	858mm(L) x 805mm(W) x 1341mm(H)
Trademark	Toptitch
Origin	China

Packaging & Delivery

Package Size 850.00cm * 850.00cm * 1430.00cm Package Gross Weight 125.000kg

Product Description

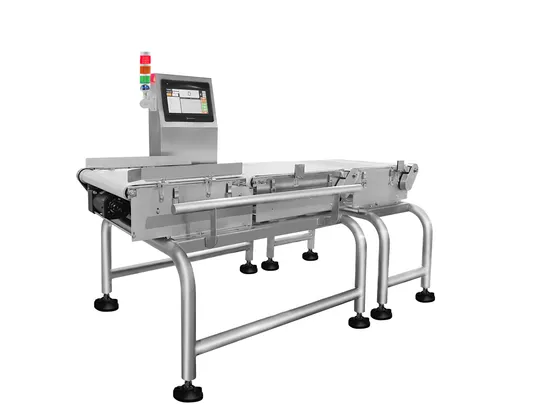

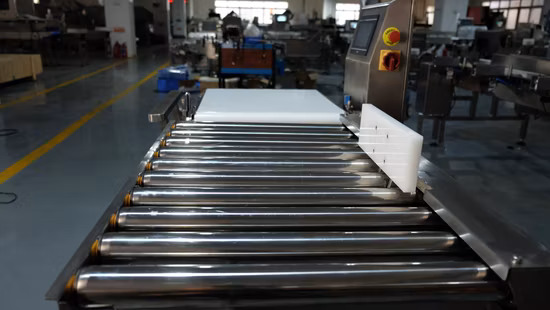

TT-CW 95 High Accuracy Checkweigher for Food Production with CE

Model	TT-CW95
Power Supply	AC220V±10% 50Hz (60Hz)
Max. weighing	200g
Weighing accuracy	±0.02g to ±0.07g
Maximum speed	180BPM
Power Rating	0.2kw
Weighing resolution	0.01g
Conveying speed	30 to 100 meters per minute
Available material weighed size	≤180mm(L) x 90mm(W)
Conveying belt size	210mm(L) x 95mm(W)
Control system	High speed A/D sampling controller
Machine dimension	858mm(L) x 805mm(W) x 1341mm(H)
Operating director	Facing to the machine, left-side in, right side out
Rejecting method	Pusher(other options: air blow, turning plate, swing bar, other special method)
Air Compressor requirement	0.6 to 1 Mpa
Air pressure Interface	Diameter 8mm
The working environment	Temperature: 0ºC to 40ºC Humidity: 30% to 95%
Frame material	Stainless steel 304
Pre-set products no.	99

Checkweigher for high-care food environments, is especially designed to withstand harsh, high-pressure, high-temperature cleaning regimes. It is a true game changer for factories handling food processed prior to cooking or final packaging.Flexible weight capacities, depending on your product, that measure from 600g in 0.5 gram graduations, up to 30000 grams in 2 gram graduations.
1. Weight ranges of 20g-1000g and 300-9999g,maximum 70 packages/min2. Applicable scope: It is used to detect whether single product weight is compliant with the set target3. Scale frame structure ensures precise and stable measurement during dynamic working period4. The LCD operation system offers both Chinese and English interfaces for easy learning5. The strong data statistic function can be used to record the detection data of each procedure6. The demountable conveying belt is adopted for convenient maintenance7. In the five standard weight sections, preset modes for 10 groups of product data can be stored8. Solid and hygienic stainless steel construction.9. Protection class IP 65 for all components.10. Compact design for easy Integration.11. Cleaning mode (optional) for highest hygiene and efficiency.




More Info.FAQ• Wide Range of ProductWorking in conveying, packaging, multi-weight sorting and detecting machines.• Product PatentsAlmost all of our products have gained CE certificate,ISO9001 certificate,IP65 and IP67 Waterpoorf and Dustproof certificate.• Professional R&D TeamThe number of skilled engineers take up 63% of total employees.• 10+ Years of Customized System IntegrationProviding all kinds of customized intelligent weighing and packaging solutions.• Complete Technical SupportAll of products is at least 12 month warranty and any enquiry will be responded within 24 hours.• After-Sale ServiceToptic Tech has setup its after-sale service in California, USA and Sichuan and Shanghai, China.
We solemnly promise: equipment and material contact parts are 304 stainless steel material or food grade plastic, in line with the health requirements.
